Q1+Q sub Line array system/Mini line array speaker/Ultra-compact sound system

FOB Reference Price:Get Latest Price
US $1-10,000 / Piece | 20 Piece/Pieces (Min. Order)
Supply Ability:
500 Piece/Pieces per Month
Port:
Guangzhou or Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RKB
Model Number:
Q1+Q sub
Components:
HF:1x3"(Neo);LF:2x10"(Neo)
Frequency Response:
60Hz -18kHz(±3dB)
Sensitivity(1W/1M):
HF:113dB/LF:103dB
Maximum Peak SPL:
139dB
Rated Power(RMS):
800W
Peak Power(PEAK):
1600W
Impedance:
8 Ohm
Crossover:
1.2 KHz
Dispersion Angle (-6dB):
75°H x 15°V
Size:
580*410*310 mm; 22KG
Packaging & Delivery
Packaging Details

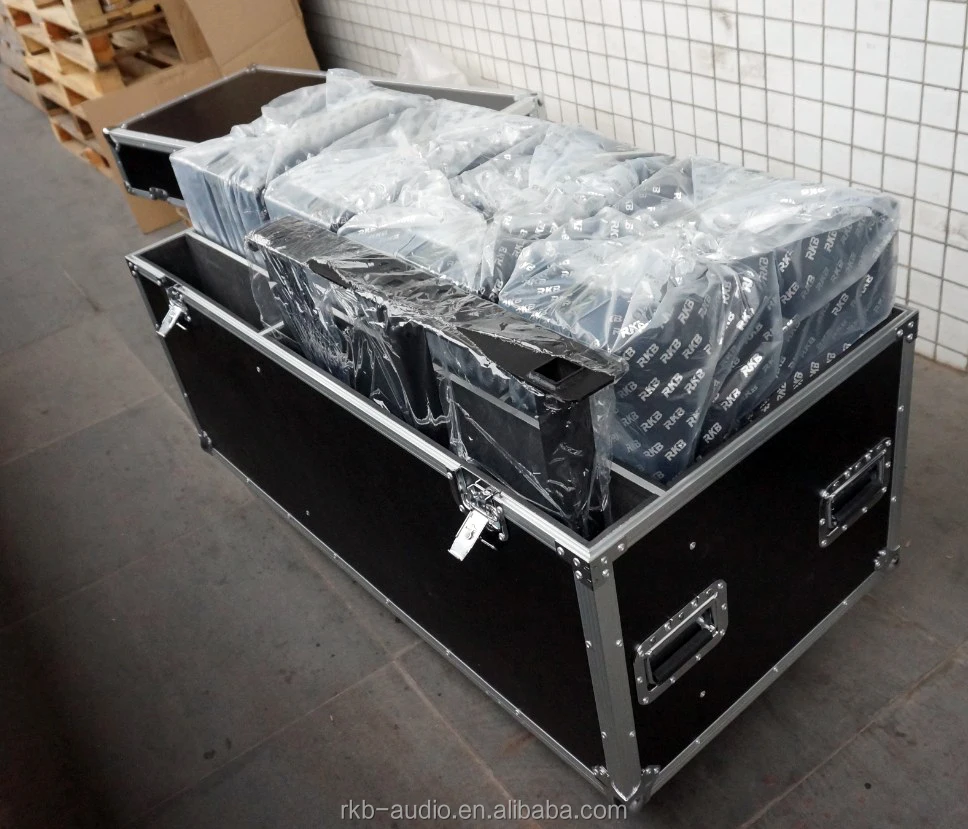

Carton or flightcase at extra cost
Delivery Time
7-15 days





Q1+Q sub Line array system/Mini line array speaker/Ultra-compact sound system

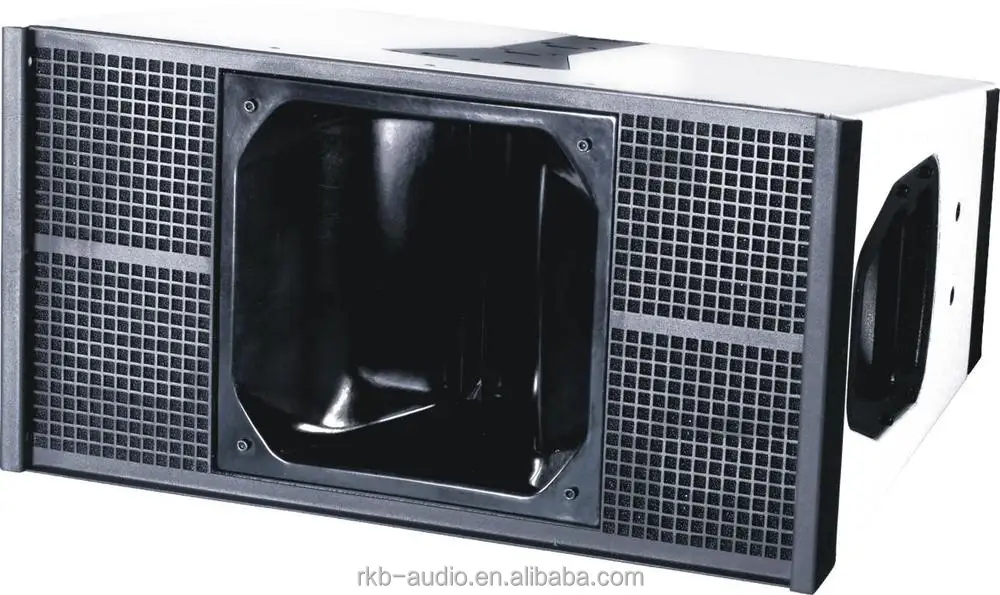

Q1 is a passive 2-way line array system for small-medium scale sound reinforcement. It's housing 2x10” neodymium woofers and 1x3" neodymium tweeter loaded with an acoustic wave shaping horn.



FEATURES:



*Ultra-compact appearance to apply some room-strict application

*The unique linear design of the horn allows high sound pressure level and long throw

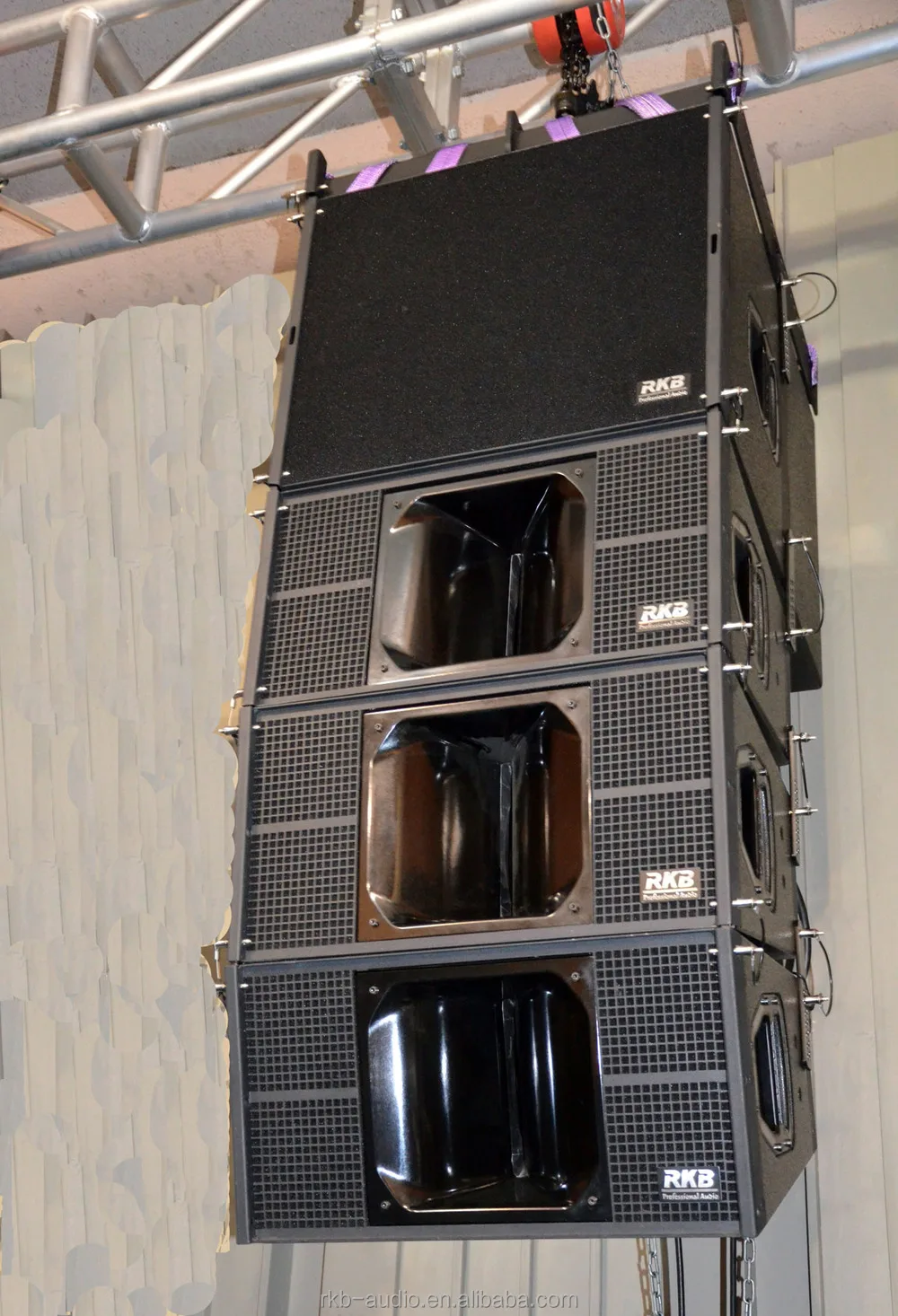

*Flexible deployment for ground-stacked or hanging

*High-transmission acoustic foam covering high-strength metal grill to keep speaker away from dust and rain

*Reliable and flexible rigging hardware



SPECIFICATIONS:





Model

Q1

Components

HF: 1x3" neo

LF: 2x10" neo

Frequency Response

60Hz - 18kHz(±3dB)

Sensitivity(1W/1M)

HF: 113dB; LF:103dB

Maximum Peak SPL

139dB

Rated Power(RMS)

800W

Peak Power(PEAK)

1600W

Impedance(Ohm)

8 Ohm

Crossover

1.2kHz

Dispersion Angle(-6dB)

75 ° H x 15 ° V

Connectors

2xNL4 Speakon

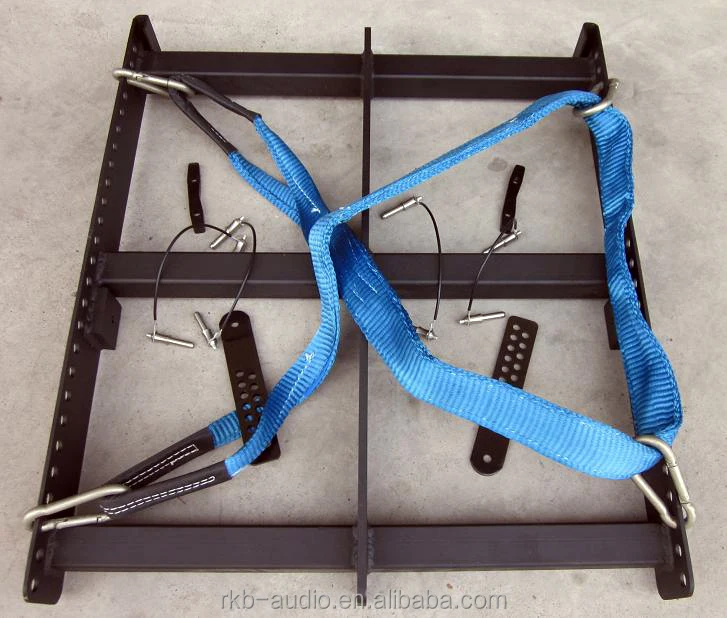

Riggings

Standard Rigging Attached

Enclosure Material

High-strength Plywood

Cabinet Finish

Germany Water Paint

Protective Grill

Black Perforated Steel with Acoustic Foam inside

Dimensions (mm)

580*410*310mm

Net. W.

22 kg
