professional line array sound system/wooden speakers

FOB Reference Price:Get Latest Price
US $1-10,000 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RKB
Model Number:
Q1
Color:
Black
Impedance:
8 Ohm
Connectors:
2xNL4 Speakon
Riggings:
Standard Rigging Attached
Enclosure Material:
High-strength Plywood
Cabinet Finish:
Germany Water Paint
SupplyAbility
SupplyAbility:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton or flightcase at extra cost
Port
Guangzhou or Shenzhen
Lead Time :
7-15 days

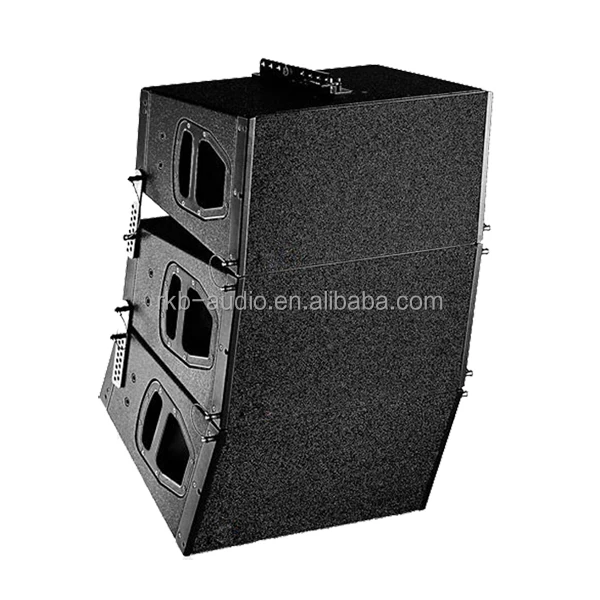

Q1 LINE ARRAY WITH COVER RKB




professional line array sound system/wooden speakers


FEATURES:


*Q1 is a two-way passive line array speaker, consists of dual 10" neodymium woofers and one piece of 3" compression neodymium tweeter fitted to a toroidal wave shaping horn.

*The perfect dispersion pattern allows the Q1 to construct vertical columns which produce a curved coherent wave front.

*Vertical configurations can be starting from two cabinets to twenty cabinets for different users or applications.

*The enclosure is constructed by high-strength 18 mm plywood, incorporates a pair of metal handles.

*A rigid metal grille with acoustically transparent form inside is constructed in the front, to protect the cabinet.

*The combination of Q1 and Q2(sub) makes the sound quality the best, clear and transparent in high frequency, mellow and elastic in middle and low frequency.

*Mostly applied in indoor and outdoor live shows, conference hall, small auditorium



SPECIFICATIONS:

Components: HF:1x3”(Neo);LF:2x10”(Neo);
Frequency Response: 60Hz -20kHz(±3dB)
Sensitivity(1W/1M): 101 dB
Maximum Peak SPL: 139dB
Rated Power(RMS): 800W
Peak Power(PEAK): 1600W
Impedance(Ohm): 8 Ohm
Crossover: 1.2 KHz
Dispersion Angle (-6dB): 75H x 0-15V
Connectors:2xNL4 Speakon
Enclosure Material: High-strength Plywood
Cabinet Finish: Germany Water Paint
Dimensions (W*D*H): 580*410*310 mm
Net. W.: 22 kg


professional line array sound system/wooden speakers

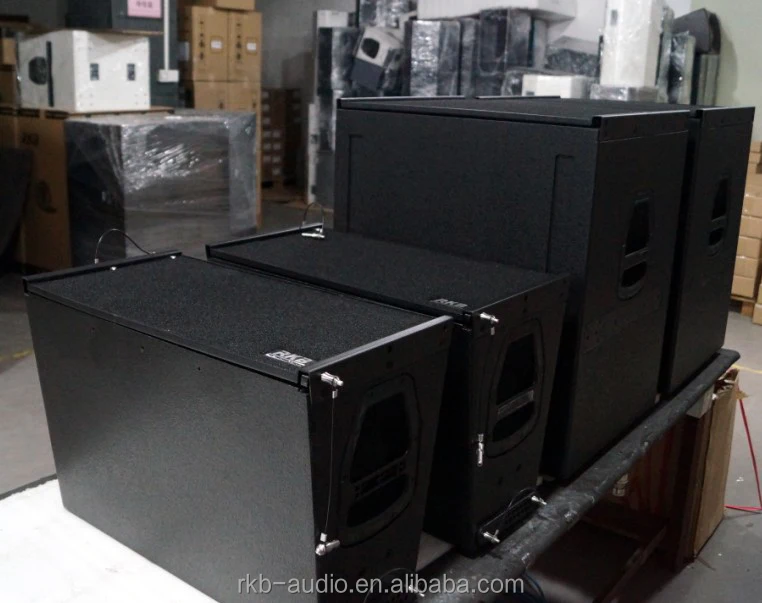

Q1 with cover(2)Q1 with cover(5)

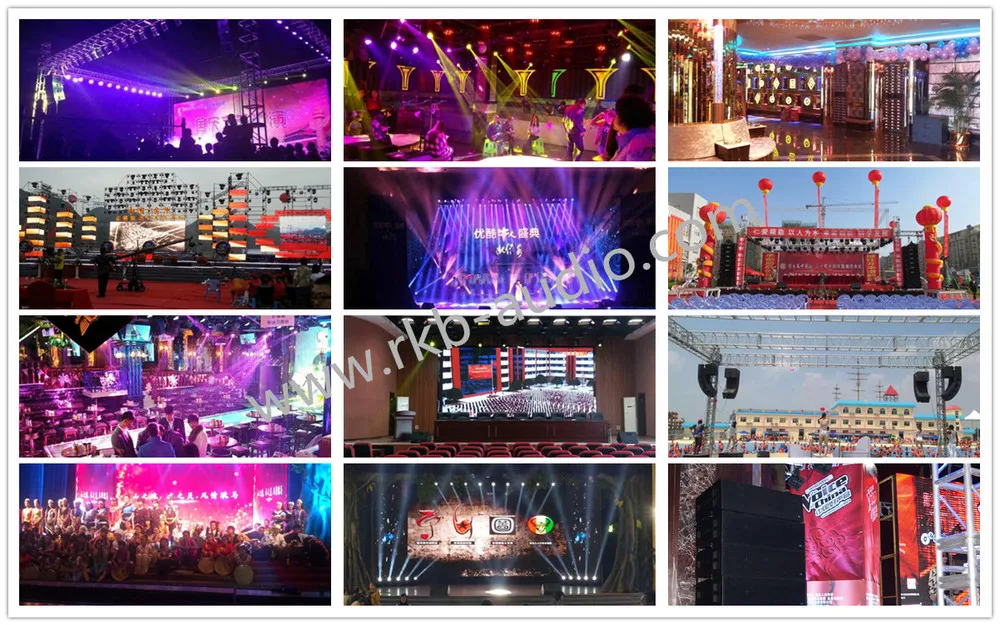

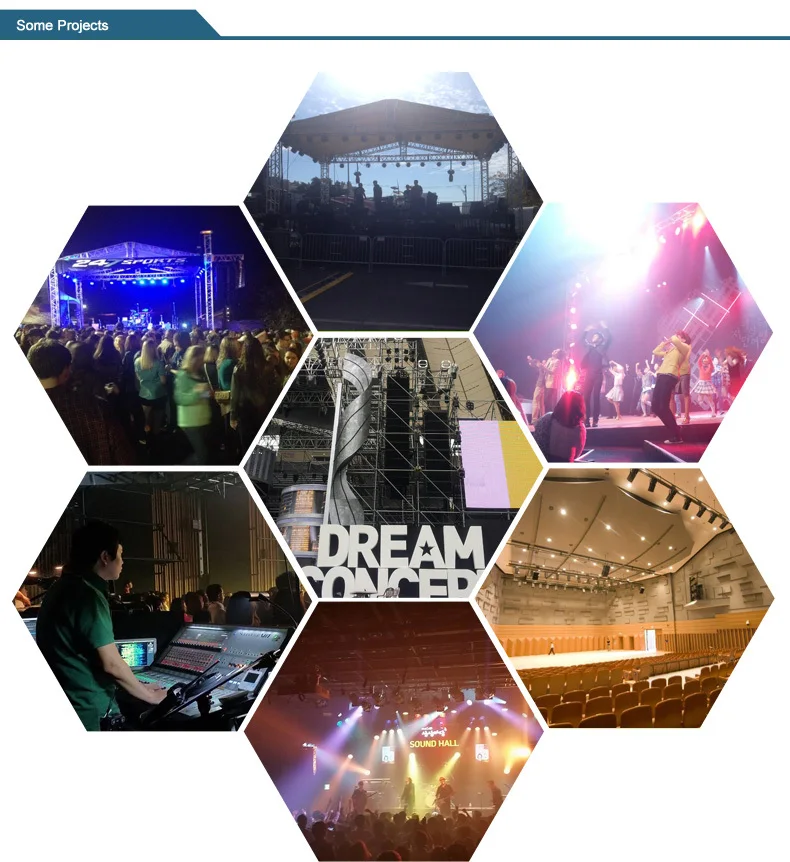

RKB Audio-Projects (2)RKB Audio-Projects (1)

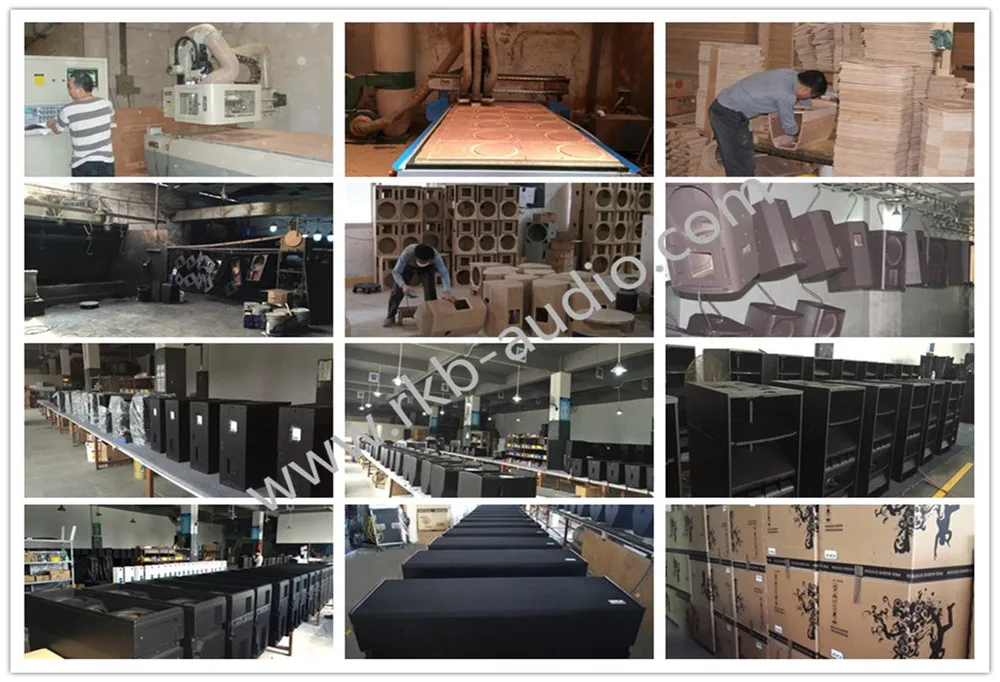

RKB AUDIO-production line
