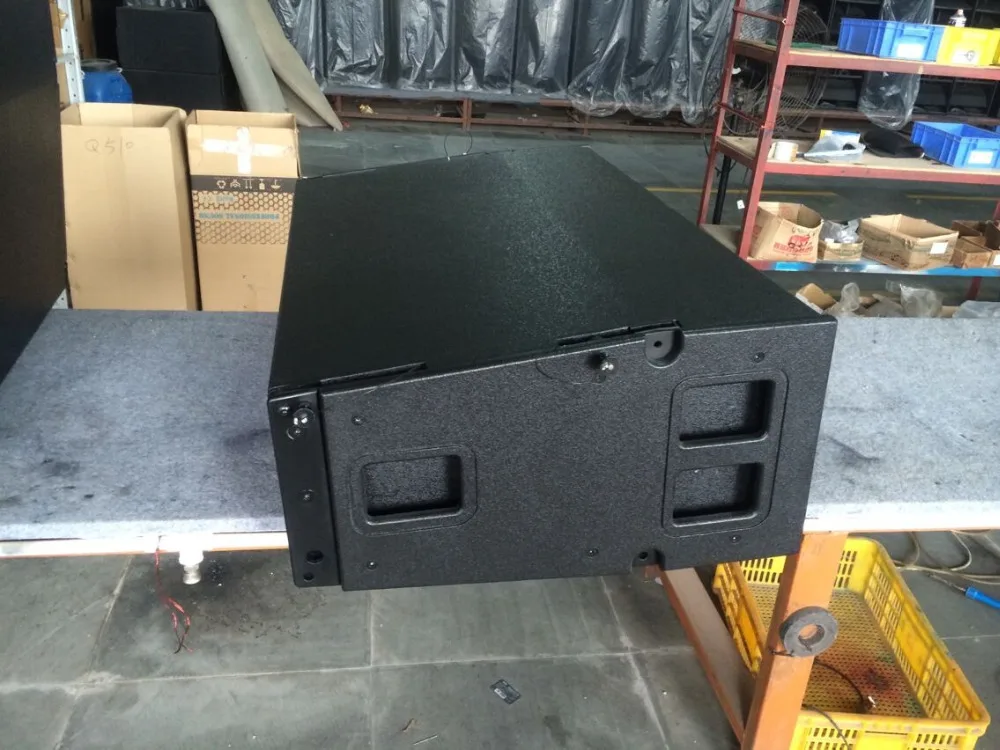

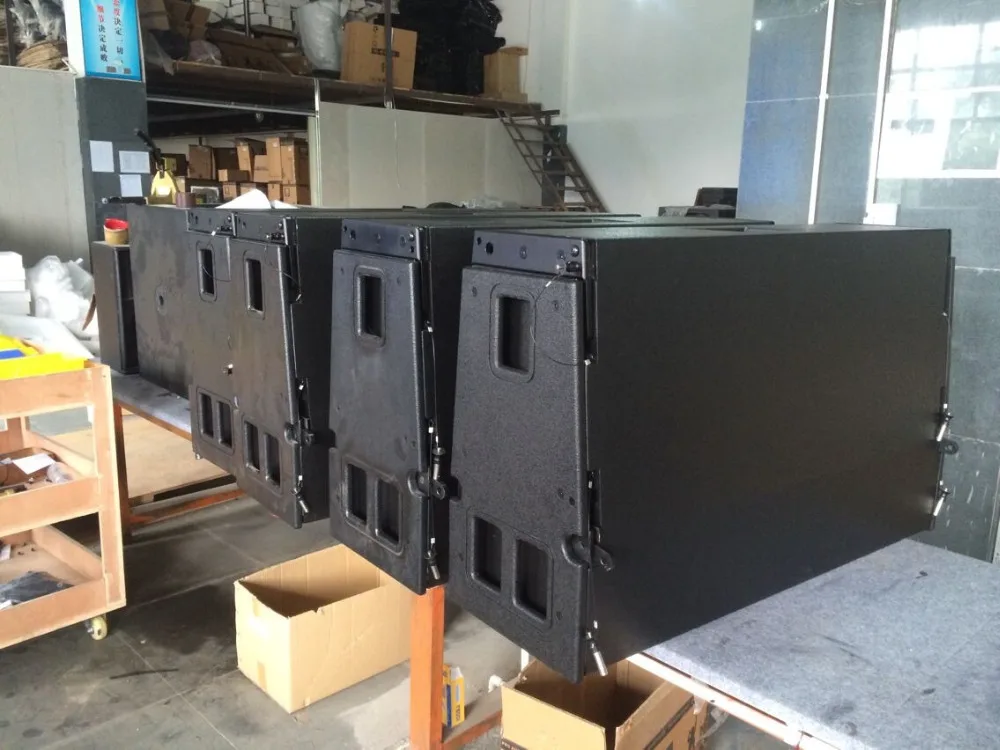

Dual 12 inch three way waterproof line array empty cabinet

FOB Reference Price:Get Latest Price
US $1-10,000 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RKB
Model Number:
LA-212
Color:
black
Power:
800W
Keyword 1:
line array empty cabinet
Keyword 2:
empty line array box
Keyword 3:
line array speaker enclosure
SupplyAbility
SupplyAbility:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton or flightcase at extra cost
Port
Guangzhou or Shenzhen
Lead Time :
7-15 days

 We also supply: line array empty cabinet , empty line array box , line array speaker enclosure

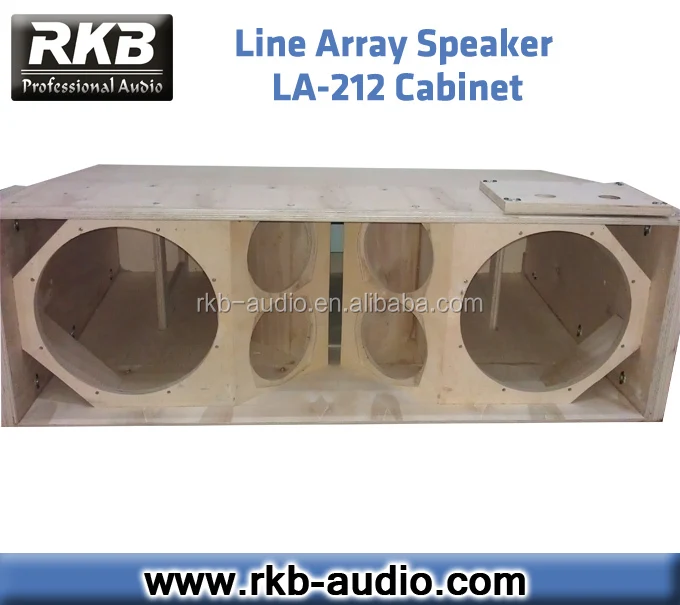

LA-212 (Cabinet).jpg




We also supply: line array 8, professional loudspeaker, speaker models, audio speaker system, speaker part,

old amplifier, midrange speaker,outdoor speaker waterproof, PA truss, karaoke machine, speaker power amplifier module,

line array truss. Okayo, the powerful amplifier of class d,tube amplifier class a module, bass built in amplifier speaker,

super tweeter,L'Acoustic style outdoor waterproof line array-LA-212,professional line array speaker,

L'Acoustic style outdoor waterproof PA line array-LA-212,bash array, php array, L'Acoustic style line array-LA-212,

line array sound system, line array speaker, empty line array box ,L'Acoustic style horn line array-LA-212(Neodymium),

 line array speaker enclosure live sound reinforcement,line array sound system, line array speaker,

Dual 12"L'Acoustic style  line array speaker-LA-212, ,stadiums line arrayDual 12" Outdoor Concerts line array -LA-212(Neodymiun),

Dual 12 inch three way waterproof line array empty cabinet ,





Dual 12 inch three way waterproof line array empty cabinet



Features:



*LA-212 is a passive three-way line array system, with frequency response 50Hz-19KHz.

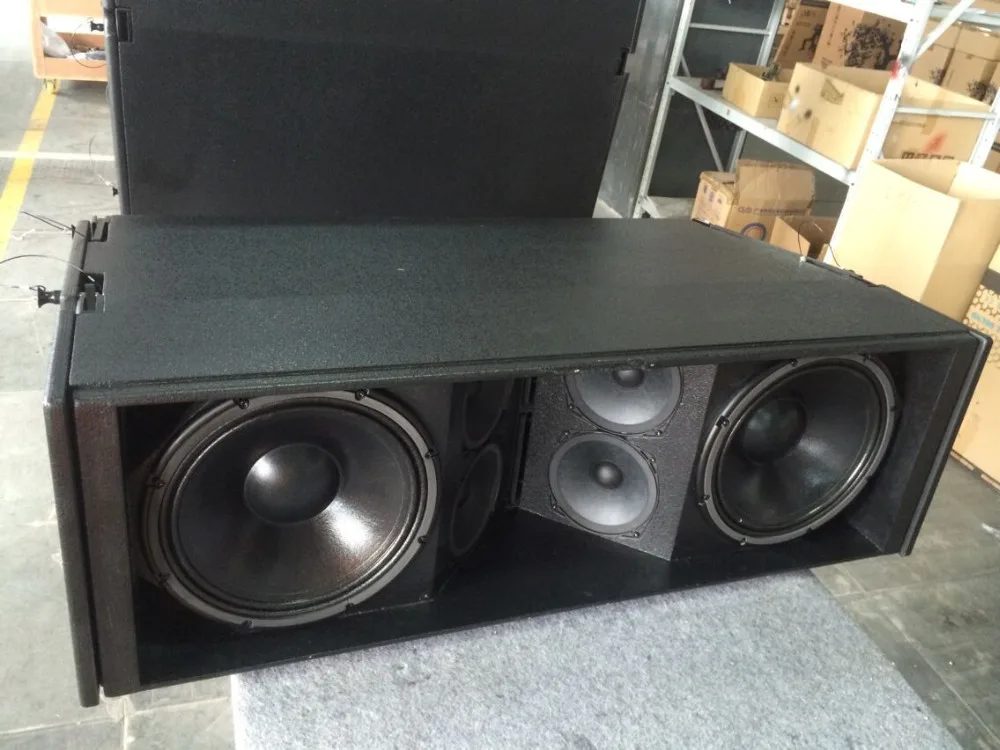

*Extremely powerful dual 12” neodymium magnet woofers and dual 44mm voice coil neodymium manget tweeters, together with 4 pieces of 6.5” MF drivers, provides unbelievable excellent sound and a wide dynamic range.

*High SPL, designed for long-distance touring sound system.

*Wide sound coverage and ultra-high resolution.

*Super-low distortion in super-high sound pressure level.

*The enclosure is constructed by high-strength plywood, with panel in 18mm thick, and other parts in 15mm.

*Trapezoidal speaker box design with the seamless gap between two cabinets.

*High-strength rigging hardware, easy and safe to install.



Applications:



*Large theaters sound system

*Auditoriums reinforcement

*Outdoor stadiums audio system

*Large music halls speaker system

*Large conference center sound

*Large touring sound system



Specifications:



Model

LA-212

Components

LF: 2x12" (Neodymium Magnet)
MF:4x6.5" (Ferrite Magnet)
HF: 2x1.75" (Neodymium Magnet)

Frequency Response

50Hz - 19kHz(±3dB)

Sensitivity(1W/1M)

LF: 129dB   MF: 130dB HF:135dB

Maximum Peak SPL

141dB

Rated Power(RMS)

HF:100W; MF:300W LF:800W

Peak Power(PEAK)

HF:200W MF:600W LF:1600W

Impedance(Ohm)

HF:12 Ohm; MF:8 Ohm; LF:8 Ohm

Crossover

/

Dispersion Angle(-6dB)

90H x 0-10 V

Connectors

2xNL8 Speakon

Riggings

Standard Rigging Attached

Enclosure Material

High-strength Plywood

Cabinet Finish

Germany Water Paint

Protective Grille

Black Perforated Steel with Acoustic Cloth on surface

Dimensions (mm)

356*1120*688

Net. W.

60 kg
