Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: RKB
  • Model Number: Q1
  • Color: Black/White
  • RMS: 800W
  • Crossover: 1.2KHz
  • Impedance: 8ohm
  • Keyword 1: Q1 line array
  • keyword 2: mini line array
  • Keyword 3: professional line array

Packaging & Delivery

Packaging Details Carton or flightcase at extra cost
Delivery Time 7-15 days





Q1 line array, mini line array, professional line array











We are also supply empty cabinet,custom cabinet,custom sound system,pro audio speaker ,line array ,amlifier ,

Q1+Q2 moblie line array,two way full range speaker ,professional audio system ,pro sound system,professional sound system.

Q1 line array ,small line array , professional line array, 800W Neodymium dual 10-inch Q1 line array,mini line array,

professional line array

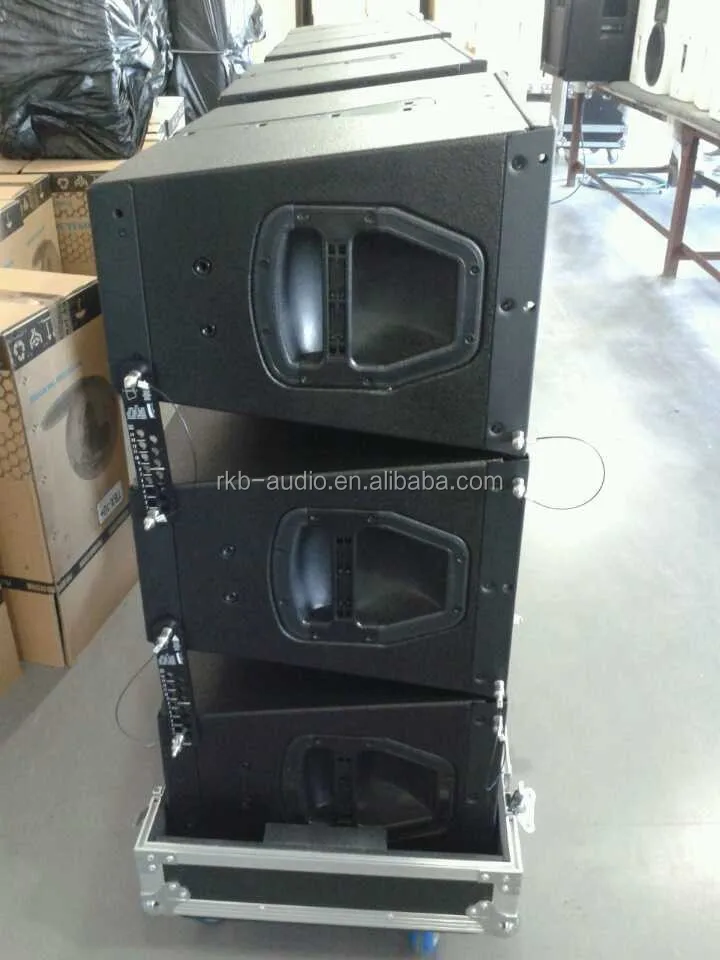

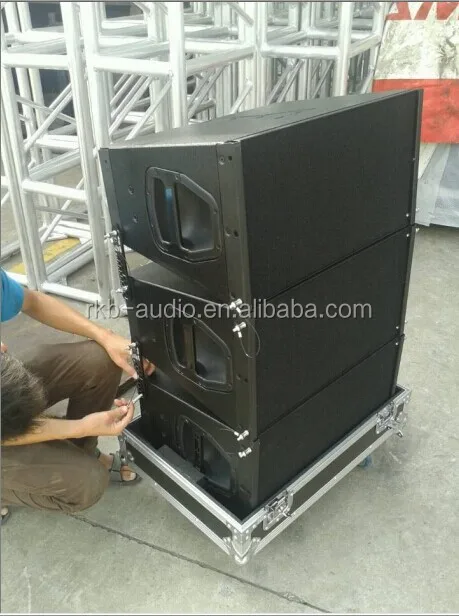

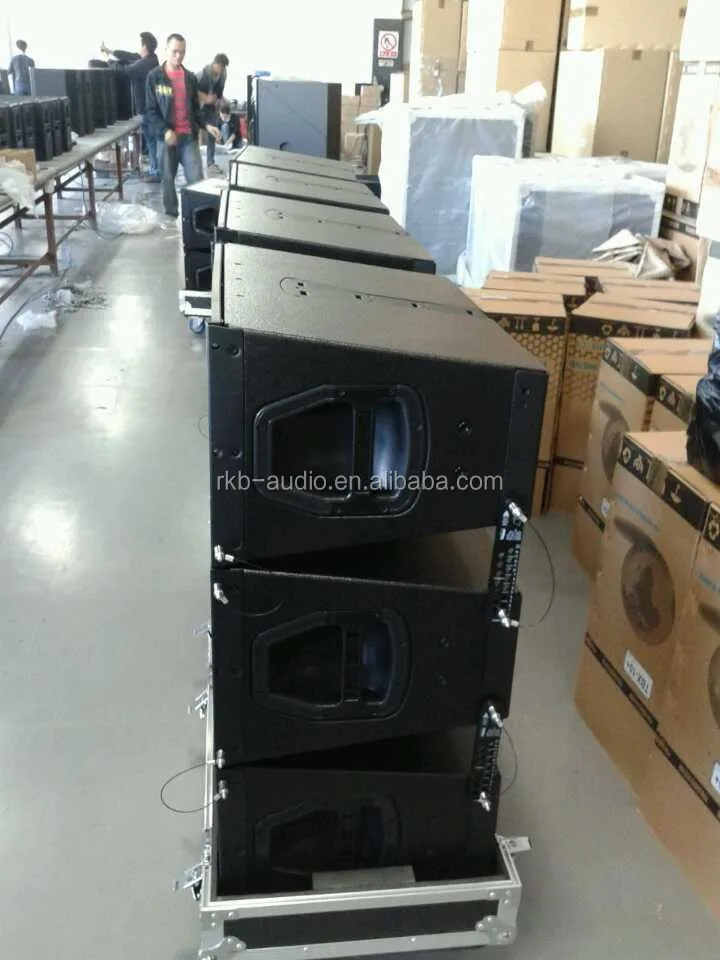

800W Neodymium dual 10 inch Q1 line array



Features:



*Q1 is a two-way passive line array speaker, consists of dual 10” neodymium woofers and one piece of 3” compression tweeter fitted to a toroidal wave shaping horn.

*The perfect dispersion pattern allows the Q1 to construct vertical columns which produce a curved coherent wave front.

*Vertical configurations can be starting from two cabinets to twenty cabinets for different users or applications.

*The enclosure is constructed by high-strength plywood, incorporates a pair of metal handles.

*A rigid metal grille with acoustically transparent form inside is constructed in the front, to protect the cabinet.

*The combination of Q1 and Q2(sub) makes the sound quality the best, clear and transparent in high frequency, mellow and elastic in middle and low frequency.

*Mostly applied in indoor and outdoor live shows, conference hall, small auditorium



Applications:

*Business clubs sound system

*Nightclubs reinforcement

*Bars/High-class KTV rooms speaker system

*High-class hotels/ Theaters speaker box

*Electronic classrooms /Multi-functional halls

*Permanent sound system installation

Specifications:



Model

Q1

Components

LF:2x10”
HF:1x3”

Frequency Response

60Hz -18kHz(±3dB)

Sensitivity(1W/1M)

HF:113dB/LF:103dB

Maximum Peak SPL

139dB

Rated Power(RMS)

800W

Peak Power(PEAK)

1600W

Impedance(Ohm)

8 Ohm

Crossover

1.2 KHz

Dispersion Angle(-6dB)

75H x 15V

Connectors

2xNL4 Speakon

Riggings

Standard Rigging Attached

Enclosure Material

High-strength Plywood

Cabinet Finish

Germany Water Paint

Protective Grille

Black Perforated Steel with Acoustic Cloth on surface

Dimensions (mm)

580*392*306

Net. W.

23 kg
